Enjoy comfort with laminated wooden window systems in the European norm of 68 mm and 78 mm. Live in a place, that contains better air quality, where dampness and humidness are balanced thanks to water-based imported paint systems and the breathable properties of wood.
It's prestigious appearance, with its high strength, is indispensable for both modern and classical buildings. AHS 68 is a complete system with all openings in a single profile series; all type and shape windows, doors. Vertical and horizontal pivots, sliding and folding door systems in a same profile look can be solved.
We offered two different wood, pine and sapelli in standard. Apart from these woods, production can be made with many wooden breeds imported specifically for projects. Our technical team will help you choose the right wood for the right climatic conditions. This allows you to have products that you can use for much longer without problems.
68 mm Wooden Window System in European Norm
-
68x78 mm glue laminated profile
-
Glazing channel up to 30 mm thick
-
Monoblock frame glazing bead with hidden nailing system
-
Aluminium drip system
-
Eurogroove accessory channel
-
Schlegel Aqua stop double gasket system
-
Up to 32 - 41 Db sound insulation value depand on glass configuraiton (Test result 37.7Db with 38 Db glass)
-
1.4 Uw thermal insulation value with 1.1 Ug Low-e glass
AHS 68
Special Wood Options
We like to take advantage of Thermo technology. But it's always important for us to do it with the right wood. We do not find it natural and long-lasting to be used in soft-textured woods and to break all cellulose fibers. For this reason, we offer this process as an option in durable woods as Thermo Iroko and Thermo Frake.
In addition, we can offer many exotic wood options. Get ready for excellent results with very long-lasting and visual quality products such as Oak, Cedar and Afromosia.
Wood Options
Every product we create for our customer is very valuable, special and important for us. A good product requires good raw materials. Therefore, we always look for the highest quality in the wooden material we supply. We investigate the most suitable wood for each of our projects from domestic and international suppliers.
When supplying products, many criteria such as moisture gradient, tissue smoothness, class, cut quality, colority are taken into consideration. In order to achieve this quality, we get help from consultants that we have not changed in more than 20 years.
We always offer our customers the best, not the cheapest. Every wood that enters our factory is in extra quality class. We also prefer PEFC certified products because of respect for nature. For us, the sustainability of nature is just as important as the quality of our product. Our production line offers Yellow American Pine and Mahogany Sapelli products as standard. However, we never limit our customers, we offer many special different wood options.
Visible Hinge
150 kg carrying
capacity
115° opening
*with special hinge
200 kg carrying capacity
Hidden Hinge
Special Accessories
For many different needs, there are different accessory options.
Child Safety Sash Lock
With this product, which is preferred in child safety, you can prevent people who do not have a key from opening the window against your will.
Angle Limiter
Keeps the window at a certain angle. It's a good option when there's something in front of the window that you don't want it to hit.
Sash Holder
This practical accessory keeps the wing closed without locking your door or window
90´ Sash Limiter
It is preferred in cases where the window or door is used in the middle of the wall. It allows the sash to be opened up to a maximum of 90 degrees. Prevents the sash from opening and hitting further.
Transom Limiter
It is used in cases where the standard size is too much. It is a very practical accessory to use when very little air flow is desired. It gives you fine tuning option with 2 location options.
Hopper arm with Clean Mode
Used in windows with a single opening direction vasistas. Allows you to open the glass easily. Cleaning the windows is very easy thanks to this accessory.
Handles & Accessories
One of the most important elements for a window and door is accessory. For this reason, we work with brands such as Maco, GU, VBH, Sigenia, which are world leaders in accessories system. We produce our systems with the top segment of accesories.
we offer most options as standard, which are offered as additional options by other companies in the industry; such as wing lift, faulty opening safety, secured pin system and hidden hinge system. Thus, we obtain a very aesthetic product in which the comfort of use is experienced at a very high level.
Optionally, we can offer products in the security class up to the RC2 norm of burglar safety. In our standard products, we offer RC1 class product to our customers with mushroom secured pin that we use at many points.
Motorized Opening Systems
When fresh air is need and also if it impossible to reach window, motorized opening is a good option for you. It is work with KNX etc systems , buttons or cell phone.
Dominate with your phone!
Glass Options
Of course, one of the most important element is glass for a window or door. Nowadays, the glass industry, which has become an important sector in itself, thus offers many options for end users and architects.
Nowadays one of the most important thing is climate change, so we are now approaching the places where we live with a new perspective. We are looking for maximum thermal, visual and acoustic efficiency.
In the AHS 68 series, we can use up to 28 mm glass thick product. Also we can use up to 30 mm glass thick product by lifting the inner gasket.
For this reason, many glass systems and brand are present to our costumers. We are working with market leaders such as Guardian, Şişecam, Pilginton and Saint Gobain.
THERMAL COMFORT COATED GLASS : High heat insulation, Solar control - Low E
-
It provides solar control and thermal insulation together with a single coating.
-
Reduces heating and cooling costs.
-
It offers solutions to different needs of projects with different performance options.
-
New architectural trends goes to expand of glass surfaces on the buildings. It increased glass thickness, more structural strength, and safety requirement. Like tempered glass when the glass is broken, it breaks into small pieces that are not sharp, eliminating the risk of injury.
-
Delays steaming on the surface of the glass.
-
Prevents window fronts from being cold in winter and hot in summer.
Types of coated glass according to Şişecam product codes; available in thickness of 6 mm and 8 mm. Plate sizes 3210x2140 , 3120x6000 mm.
Nötral 60/28; it is used in mixed projects where high light permeability, maximum solar control, low reflectivity and neutral effect come to the forefront such as residences, schools, hospitals, scenic residences and hotels. Reduces the cost of cooling summer by limiting solar temperature input more than ordinary double glazing.
Nötral 70/37; It is preferred in projects such as residences, villas and store windows where maximum transparency and low reflection come to the forefront as well as heat and solar control.
Nötral 58/32; it is used in projects such as residence, office, hospital, which need effective heat and solar control.
Nötral 51/28; in addition to optimum daylight and maximum solar control, it is preferred in projects such as offices, hospitals, hotels where a green color effect is demanded on the front.
Nötral 50/27; in addition to optimum daylight and maximum solar control, it is preferred in projects such as offices, hospitals, hotels where a blue color effect is demanded on the front.
Nötral 62/44; high light permeability, thermal insulation and solar control are used in requested residence and school projects.
Nötral 50/33; it offers solutions to projects such as green building certified offices, hotels and hospitals such as LEED and BREEAM, where optimum light permeability, thermal insulation and effective solar control are preferred.
Nötral 41/27; it is preferred in hot climatic zones and roof lights where daylight control and more effective solar control come to the forefront.
Deep Blue 40/28; it offers the ideal solution to projects and roof lights where daylight control, more effective solar control and blue color effect are demanded on the front.
Laminated glass : Thief safety and human safety
Glass is a fragile material and standard flat glass has low resistance to impacts. By increasing the thickness of the glass, the strength of the glass against impacts increases, but the risks of injury caused by glass breakage could not be eliminated. Laminated Glass is safety and security glass. Minimizes the risks from glass breakage by keeping the parts in place in case of breakage.
-
Minimizes the risk of injury in accidents caused by people hitting glass.
-
Provides security against external impacts. In attacks and theft attempts with vehicles such as stones and sticks, it delays or prevents entry.
-
Contributes to sound insulation.
-
It prevents the entry of ultraviolet (UV) rays, which are the reason for fading the colors of items and fabrics, by 97-99%.
-
Thermal insulation is also provided by using insulating glass units.
-
Efficient heat control is achieved with low-E coated laminated glass.
-
It is used in railings as a permeable product.
Acoustic Laminated Glass : Human Safety and Superior Sound Insulation
Acoustic Laminated Glass is used for noise control. Specially developed to provide effective sound insulation in high noise level environments. It also has the safety feature of Laminated Glass. It has been developed to provide effective sound insulation with special sound absorb lamination products placed between two windows.
-
Where as vehicles, planes, trains and klaxon noises are intense,
-
Events with high music environment, concert areas
-
Meeting rooms,
-
In translation cabins, social network shooting cabins,
-
In office compartments and on the facades of office buildings,
-
It is preferred in factories and private residences.
Benefits ;
-
The noise level outside is reduced to a normal calm environment level, improving the quality of life of individuals.
-
Contributes to reducing the harmful effects of noise on human health.
-
Minimizes the risk of injury in accidents caused by people hitting glass.
-
Provides security against external impacts. Prevents/delays entry in attacks and theft attempts with vehicles such as stones and sticks.
-
It prevents the entry of ultraviolet (UV) rays, which are the reason for fading the colors of items and fabrics, by 97-99%.
-
Thermal insulation is also provided in addition to safety and noise control by using insulated units.
-
Effective heat control is ensured by acoustic laminated glass with Low-E coating.
Ultra Clear Glass : Visual Quality
Ultra Clear glass with high light permeability and clarity; it is preferred in storefronts, museums display units, atrium and stair railings, window and door windows, intermediate partition walls, furniture (table, coffee table and shelf) windows, solar panels. Thanks to the low iron value in the glass, a more colorless glass is obtained. Thus, at a heartfelt glance, the color of the objects outside appears much closer to its natural color.
-
It has high light permeability and clarity
-
Thanks to its transparency, it shows the objects on display behind it in their true colors and brightness.
-
It offers unparalleled beauty and performance in storefronts, museum exhibition units, building atriums, stair railings, glass doors, furniture as partition wall, mirrors, shower cabins, glass elevators with its clarity that feels like no glass.
-
When viewed from the section, the greenery color of the normal glass is completely lost.
-
Provides 91% light permeability.
-
By applying secondary operations to Şişecam Ultra Clear product, insulation glass unit, laminated glass, tempered glass, partial tempered glass, eama painted glass, bumbleed glass, coated glass, mirror and painted glass can be produced.
-
It provides maximum benefit from energy from the sun in winter and provides passive solar energy acquisition.
Tempered Glass - Human safety and Static resistance
In line with architectural trends, it meets the safety needs arising from the expansion of glass surfaces and increased glass thicknesses in buildings. When the glass is broken, it breaks into small pieces that are not sharp, eliminating the risk of injury. Tempered heat control glass is about 5 times more durable than an untempered glass. For this reason, it should be used in terms of both safety and static competence in large glass dimensions.
If the glass is broken, the glass parts are divided into much smaller sizes than normal sizes and have less sharpness. For this reason, it also reduces the injury rate.
-
Temperable glass, which is preferred in places such as residences, offices, hotels, shopping malls, airports, commercial buildings, roof lights and winter gardens, provides users with comfortable living spaces; meets the safety needs with being temperable. It can be applied to many types of glass. It provides both safety and thermal comfort when used together with thermally coated glass.
Reflective Glass - Reducing Visibility and Heat Control
Reflekte glass offers solutions for dressing facades, windows of commercial buildings, balcony glazing and used for intermediate partition walls or decorative applications in interior architecture.
-
It limits the entry of solar heat into the building, controls the excessive brightness of the sun, offers a comfortable working and living environment.
-
Reduces cooling energy consumption, saving cooling costs.
-
It creates a mirror effect when viewed from the point of view where the light is strong. t provides a one-way view from the inside out during daylight hours and from the outside to the outside at night.
-
It provides image integrity by hiding building elements such as columns, beams, parapet walls, suspended ceilings and installation gaps with the help of reflective feature in buildings with dressing facades.
-
When the coated surface is used to come inwards (2nd surface), the color comes to the forefront, while the reflection comes to the forefront when it is used to come outwards (1st surface).
-
Tempering, partial tempering, bumbleing, reamination printing and laminated can be done.
Anti Reflective Glass - Great Visibility
Produced by applying a special coating. There is no light reflection, so it gives the appearance as if there is no glass. Antireflektive glass is actually used in many areas in our daily life such as watches, car windows, mobile phones, machine lenses.
It is a solution that includes coating to reduce reflections. Anti-refletive glass destroys glare and unwanted mirror appearances on glass.
Jalousie Glass
These system, which are usually used for visual control purposes, can be produced motorized if desired manually.
AHS 68 . Window
Wide range of products, temperature of wood, comfortable use. It's all in one product.
The AHS 68 wooden window system allows different types of products to be produced. With our CNC process infrastructure, all kinds of products can be produced, including arched, triangular form, angle. Compatible with all glass systems with a total glass thickness of 28 mm. It has a high insulation value with its double sealed structure.
With the optional 3rd gasket, storm proof product can be obtained. We use a special seal containing Teflon-coated EPDM foam so that it serves for a very long time without being affected by sunlight and ambient conditions.
It is possible to obtain very aesthetic images with our thin real wood carolage systems made with special adhesive tape.
Proved performance
Thanks to plugtech wood passing system that products can only be produced with CNC machines, our products has a very robust corner With our CNC machining center with a sensitivity of one in a thousand, products are processed with precision and are always observed to be of superior quality. Our products have been tested by independent laboratories according to EN1026, EN 1027, EN12211 and EN 14069 norms.
900 x 1700 mm products test data ;
Air permeability - Class 4 (±600 Pa)
Water tightness - Class 9A (±600 Pa)
Wind load resistance - Class C3 (±1200 Pa, L/300 criterion)
Static torsion - Class 4 ( 350 N )
Acoustic performance - EN ISO 7171-1 Rw (C; Ctr ) - 37,7 (-2,1 ; -4,3 ) dB
( 6 x 16 x 4.4 with laminated glass)
Heat transmission coefficient - Uw = 1.43 W/m² K
Products up to 900 x 2300 Are produced under factory warranty. Special production products up to 1200 x 3200 size can be produced. Loads up to 200 Kg can be carried.
AHS 68 . Door
Wide range of products, temperature of wood, comfortable use. It's all in one product.
The AHS 68 wooden window system allows different types of products to be produced. With our CNC process infrastructure, all kinds of products can be produced, including arched, triangular form, angle. Compatible with all glass systems with a total glass thickness of 28 mm. It has a high insulation value with its double sealed structure.
With the optional 3rd gasket, storm proof product can be obtained. We use a special seal containing Teflon-coated EPDM foam so that it serves for a very long time without being affected by sunlight and ambient conditions.
It is possible to obtain very aesthetic images with our thin real wood carolage systems made with special adhesive tape.
AHS 68 Wooden folding door system stands out for its easy use and longevity. This system, which consists entirely of stainless steel hinges, sliding locks and rollers, defies years. Thanks to the top roller system, it is offered with a zero or 1.5 cm threshold with the floor. This door system, which full integrated the interior and exterior space, allows all kinds of use with many different opening schemes.
Thanks to its active door leaf, it allows a single sash to be used as a door without opening the entire product.
System Properties
Max sash width : 120 cm
Min sash width : 60 cm
Max sash height : 340 cm
Min sash height : 100 cm
Max sash weight : 100 kg
* Sash weight can be increased to 150 kg with special accessories.
AHS 68. Folding Door
Pivot window with sashes that can turn 340 angle, especially favorite of women. It’s incredibly easy to clean the window because the outside can come in. With ventilation mode, it offers ventilation even in windy or rainy weather. It allows to cross undivided large glass areas with sashes clearances of up to 6 m2. It can be produced horizontally or vertically.
Position 1 : Locked
Position 2 : Open
Position 3 : Cleaning
It performs micro-ventilation with its special handle, dirty air comes out from above when entering fresh air from the bottom. With this feature, you can ventilate the spaces properly in a very short time. Since thehandle flap locks, it is not possible to move from the wind, it can be left open for ventilation even in the rain.
It is conveniently used in the ventilation position with a specially designed arm for pivot windows.
Even with strong winds, the wing does not move and provides effective ventilation.

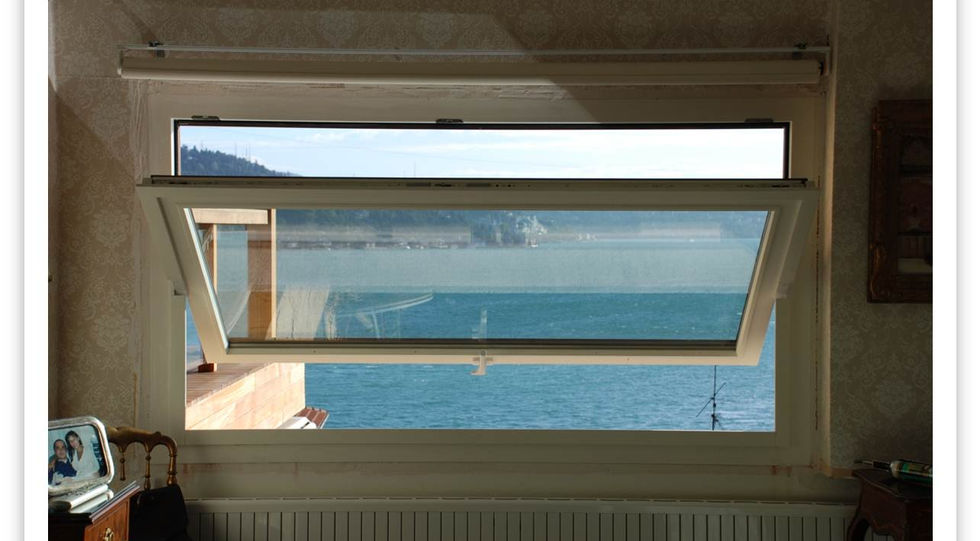

Horizontal Pivot
It was created for you to enjoy uninterrupted views. With this system, it has become very easy to clean the window. It can be left open in rain and windy weather. It can rotate at a 350 degree angle.
Max. Weight : 175 - 300kg
Max. Width : 295 cm
Max. Height : 220 cm
Vertical Pivot
It's the best way to bring the air of ship porthole to your home. The rain is clear without the wind. It can rotate at a 350 degree angle.
Max Weight : 175 Kg
Max diameter : 150 cm
AHS 68 . Horizontal Pivot
AHS 68 . Vertical Pivot
AHS 68 Wooden folding door system stands out for its easy use and longevity. This system, which consists entirely of stainless steel hinges, sliding locks and rollers, defies years. Thanks to the top roller system, it is offered with a zero or 1.5 cm threshold with the floor. This door system, which fully insizes the interior and exterior, allows all kinds of use with many different opening schemes.
Thanks to its active door leaf, it allows a single sash to be used as a door without opening the entire product.
System Properties
Max sash width : 120 cm
Min sash width : 60 cm
Max sash height : 340 cm
Min sash height : 100 cm
Max sash weight : 100 kg
* Sash weight can be increased to 150 kg with special accessories.
